Monitor Tactical Wearable Screen

ROBUST & COMPACT MULTICHANNEL MONITOR, PROVIDING EACH TEAM MEMBER WITH A HIGH RESOLUTION 2.7 INCH SCREEN, MOUNTABLE ON ARM OR ANY SUPPORT TO ALLOW HANDS-FREE OPERATION

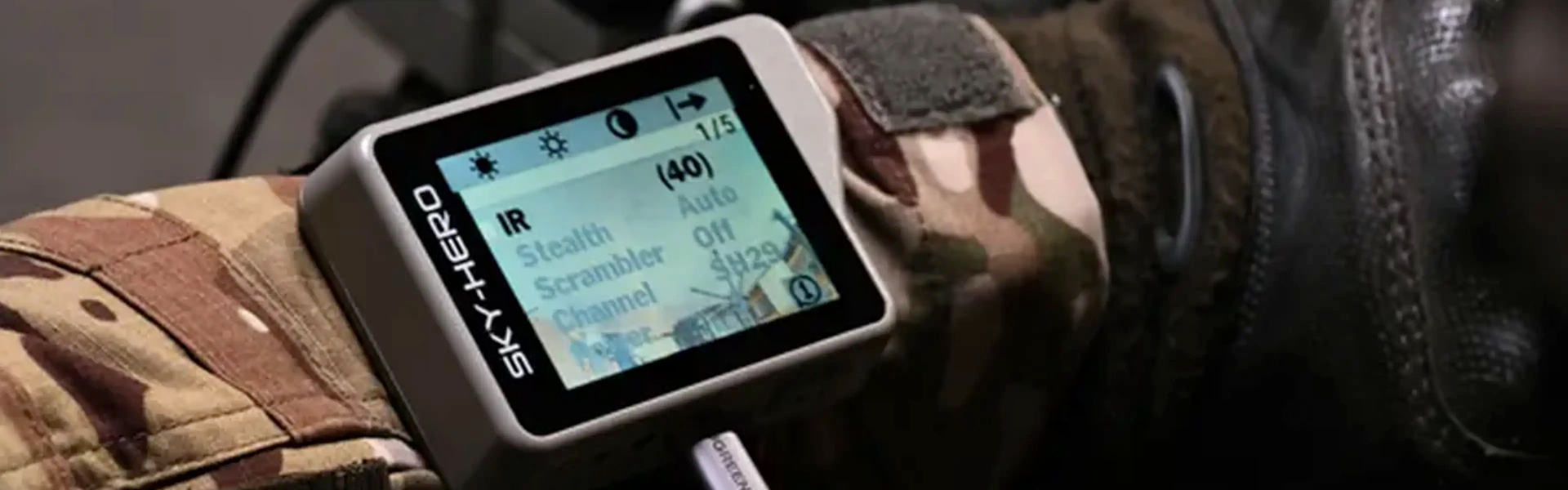

Once mounted on the wrist, this compact screen provides access to live-streamed audio/video intel from up to 4 separate Sky-Hero devices -Loki, Sigyn and Narfi whether they are in motion or in sentry mode.

Via this additional monitor, each member of the team can be fed, real-time audio-video intel from any vehicle currently deployed by the operator.

Real-time delivered A/V information greatly facilitates tactical operations, enhances situational awareness, and enables faster response to operational risks and threats.

Up to 4 Streams

Team members switch between the A/V feed of deployed vehicles, by pressing one of the 4 channel buttons

Basic Controlle

Basic setup of the Narfi MkI Pole Camera Head once these devices are cable-connected together Sturdy Frame

Built using high-grade aluminium & polycarbonate, further protected with 1mm Corning Gorilla Glass screen for extra durability

Bodyworn Design

Ergonomic shape and easy fastening systems, to be wrist-worn in combination with other tactical gea

#2 SPECS Monitor

Weight 145 g 5 oz
Power Supply Li-ion Cell 3.7V 1800mAh

Embedded & Rechargeable

Run time 180 min
Housing Material Polycarbonate & Aluminium
Ops Temperature -20°C to 50°C -4°F to 122°F
Frequency Range Same as main control station
Video Descrambling FPGA 8 Bit
Avg. Range LOS NLOS 1,5 km 150 m | 1 mi 164 yd
Monitor Diagonal Size 2,7 in
Monitor Resolution 960×240 px
Connections Power USB-C Audio-Video Out jack 2.5 Headphone jack 2.5 Ext. antenna MMCX

#3 IN OPERATION

External MMCX antenna connector for increased range using an additional external plug-in antenna
Universal attachment system with multiple mounting possibilities; arm watch, picatinny rail, second GCS screen…
4 easy-access buttons to quickly select pre-programmed frequencies and enable instant switch between the feed of up to 4 deployed vehicles/pole cameras
Easy to use visual interface to change the pre-programmed frequencies or modify the screen parameters
2 Embedded jack connectors to connect headphones and/or to externally stream the Audio/Video feed
USB-C connector for charging the embedded battery, connecting an external battery or basic control of the Narfi Pole Camera Head
